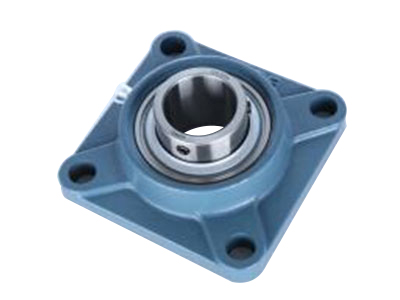

UCF Series

Object
2D
PDF Download

Send inquiry

select	Inquiry	Unit No.	Bearing No.	Housing No.	Shaft Dia		Boundary dimensions(mm)									Bolt Size	Mass(Kg)
select	Inquiry	Unit No.	Bearing No.	Housing No.	in.	mm	a	e	i	g	l	s	z	Bi	n	Bolt Size	Mass(Kg)
		UCF201-8	UC201-8	F204	1/2	-	86	63.5	15	11	25.4	12	33.3	31	12.7	3/8	0.7
		UCF202-10	UC202-10	F204	5/8	-	86	63.5	15	11	25.4	12	33.3	31	12.7	3/8	0.7
		UCF204	UC204	F204	-	20	86	63.5	15	11	25.4	12	33.3	31	12.7	M10	0.7
		UCF204-12	UC204-12	F204	3/4	-	86	63.5	15	11	25.4	12	33.3	31	12.7	3/8	0.7
		UCF205	UC205	F205	-	25	95	70	16	13	27	12	35.7	34	14.3	M10	0.8
		UCF205-14	UC205-14	F205	7/8	-	95	70	16	13	27	12	35.7	34	14.3	3/8	0.8
		UCF205-15	UC205-15	F205	15/16	-	95	70	16	13	27	12	35.7	34	14.3	3/8	0.8
		UCF205-16	UC205-16	F205	1	-	95	70	16	13	27	12	35.7	34	14.3	3/8	0.8
		UCF206	UC206	F206	-	30	108	83	18	13	31	12	40.2	38.1	15.9	M10	1
		UCF206-17	UC206-17	F206	1-1/16	-	108	83	18	13	31	12	40.2	38.1	15.9	3/8	1
		UCF206-18	UC206-18	F206	1-1/8	-	108	83	18	13	31	12	40.2	38.1	15.9	3/8	1
		UCF206-19	UC206-19	F206	1-3/16	-	108	83	18	13	31	12	40.2	38.1	15.9	3/8	1
		UCF206-20	UC206-20	F206	1-1/4	-	108	83	18	13	31	12	40.2	38.1	15.9	3/8	1
		UCF207	UC207	F207	-	35	117	92	19	15	34	14	44.4	42.9	17.5	M12	1.4
		UCF207-20	UC207-20	F207	1-1/4	-	117	92	19	15	34	14	44.4	42.9	17.5	7/16	1.4
		UCF207-21	UC207-21	F207	1-5/16	-	117	92	19	15	34	14	44.4	42.9	17.5	7/16	1.4
		UCF207-22	UC207-22	F207	1-3/8	-	117	92	19	15	34	14	44.4	42.9	17.5	7/16	1.4
		UCF207-23	UC207-23	F207	1-7/16	-	117	92	19	15	34	14	44.4	42.9	17.5	7/16	1.4
		UCF208	UC208	F208	-	40	130	102	21	15	36	16	51.2	49.2	19	M14	1.8
		UCF208-24	UC208-24	F208	1-1/2	-	130	102	21	15	36	16	51.2	49.2	19	1/2	1.8
		UCF208-25	UC208-25	F208	1-9/16	-	130	102	21	15	36	16	51.2	49.2	19	1/2	1.8
		UCF209	UC209	F209	-	45	137	105	22	16	38	16	52.2	49.2	19	M14	2.2
		UCF209-26	UC209-26	F209	1-5/8	-	137	105	22	16	38	16	52.2	49.2	19	1/2	2.2
		UCF209-27	UC209-27	F209	1-11/16	-	137	105	22	16	38	16	52.2	49.2	19	1/2	2.2
		UCF209-28	UC209-28	F209	1-3/4	-	137	105	22	16	38	16	52.2	49.2	19	1/2	2.2
		UCF210	UC210	F210	-	50	143	111	22	16	40	16	54.6	51.6	19	M14	2.4
		UCF210-30	UC210-30	F210	1-7/8	-	143	111	22	16	40	16	54.6	51.6	19	1/2	2.4
		UCF210-31	UC210-31	F210	1-15/16	-	143	111	22	16	40	16	54.6	51.6	19	1/2	2.4
		UCF210-32	UC210-32	F210	2	-	143	111	22	16	40	16	54.6	51.6	19	1/2	2.4
		UCF211	UC211	F211	-	55	162	130	25	18	43	19	58.4	55.6	22.2	M16	3.6
Previous12 Next
